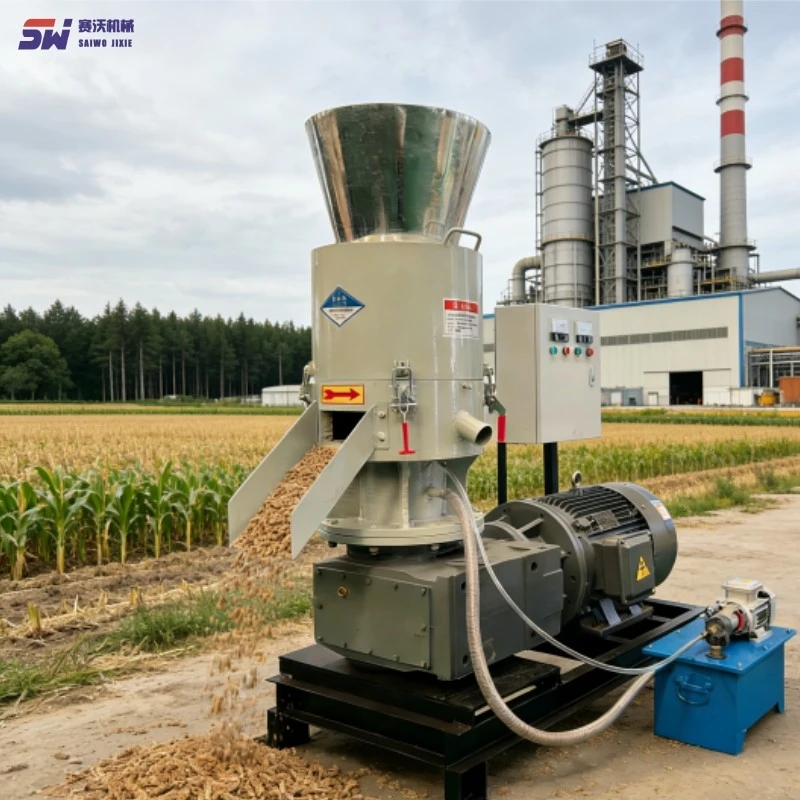

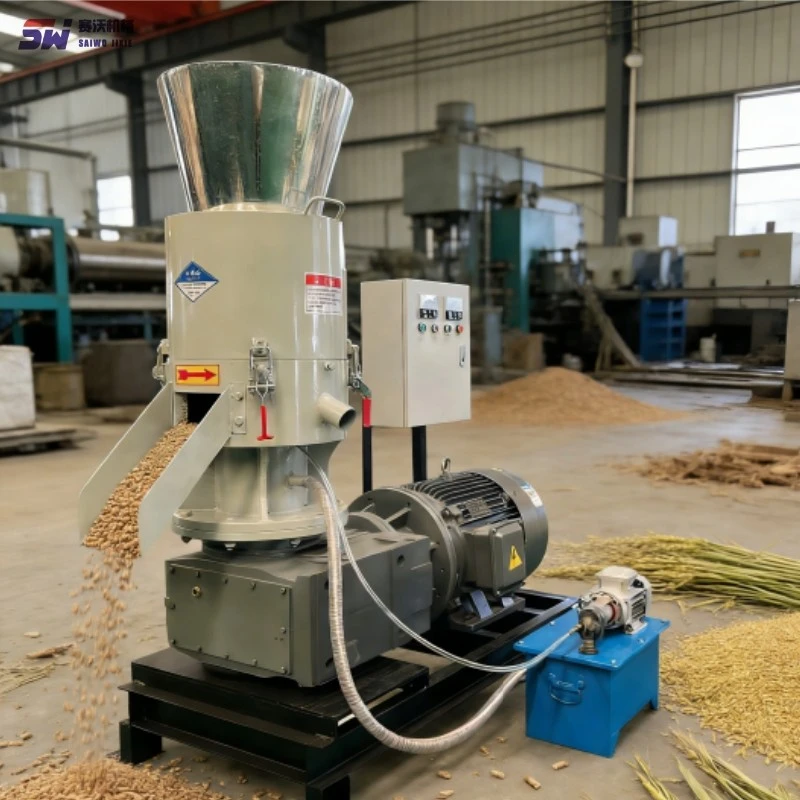

Small Pellet Mill flat die biomass pellet mill wood fuel pellet machine
Small pellet mill is a device that converts agricultural and forestry waste (such as sawdust, straw, rice husks, etc.) into high-density pellet fuel, suitable for use in homes, small farms, or workshops.
Technical Specifications
|
Model |
Power (kw) |
Output (kg/h) |
Weight (kg) |
|
350 |
22 |
200-300 |
550 |
|
450 |
37 |
500-600 |
950 |
|
550 |
55/75 |
800-1000 |
1200 |
|
650 |
90/110 |
1000-1500 |
1600 |
Small Pellet Mill Structural Features
1. Structure: The die is a horizontally placed, thick disc with vertical cylindrical holes. The pressure rollers, driven by a motor, move in a circular motion on the flat die, crushing and extruding the raw material into the die holes.
2. Features: Relatively simple structure, suitable for small to medium production capacity and non-timber soft materials. Relatively low price and easy operation.
Small Pellet Mill Usage Precautions
1. Raw Material Pre-treatment: Ensure the raw material is dry, free of impurities, and the moisture content is controlled between 12% and 18%. The raw material particle size should be moderate to facilitate crushing and compression molding.
2. Equipment Maintenance: Regularly clean the residue and impurities inside the equipment to keep it clean. Check all parts of the equipment for damage and replace any damaged parts promptly. Regularly lubricate the equipment to extend its service life.
3. Safe Operation: When operating the equipment, follow the operating procedures to ensure personal safety. Avoid cleaning or maintenance work while the equipment is running. After shutdown, the power supply should be disconnected to ensure that the equipment is in a safe condition.
